Kaidi Model KDPT007-156 Lift Chairs Power Recliner Motor Linear Actuator Replacement

<p>This Motor Kaidi Linear Actuator Model KDPT007-156 replaces Kaidi Model KDPT007-156 and many different brands and models. It has 4 cable plug, 2 pin flat round male power transformer connection, 2x2 pin flat round female motor connection and 8 pin female hand control connection. Please check your label before ordering. Should you have any question, feel free to contact us.</p><p>Please Note: If you have questions on whether this will work with your product, please contact us at any time.</p><p><br></p>

• OEM Kaidi Power Recliner Lift Chairs Motor Actuator Model KDPT007-156

• The motor replaces kaidi kdpt007-156, Please check your label before ordering

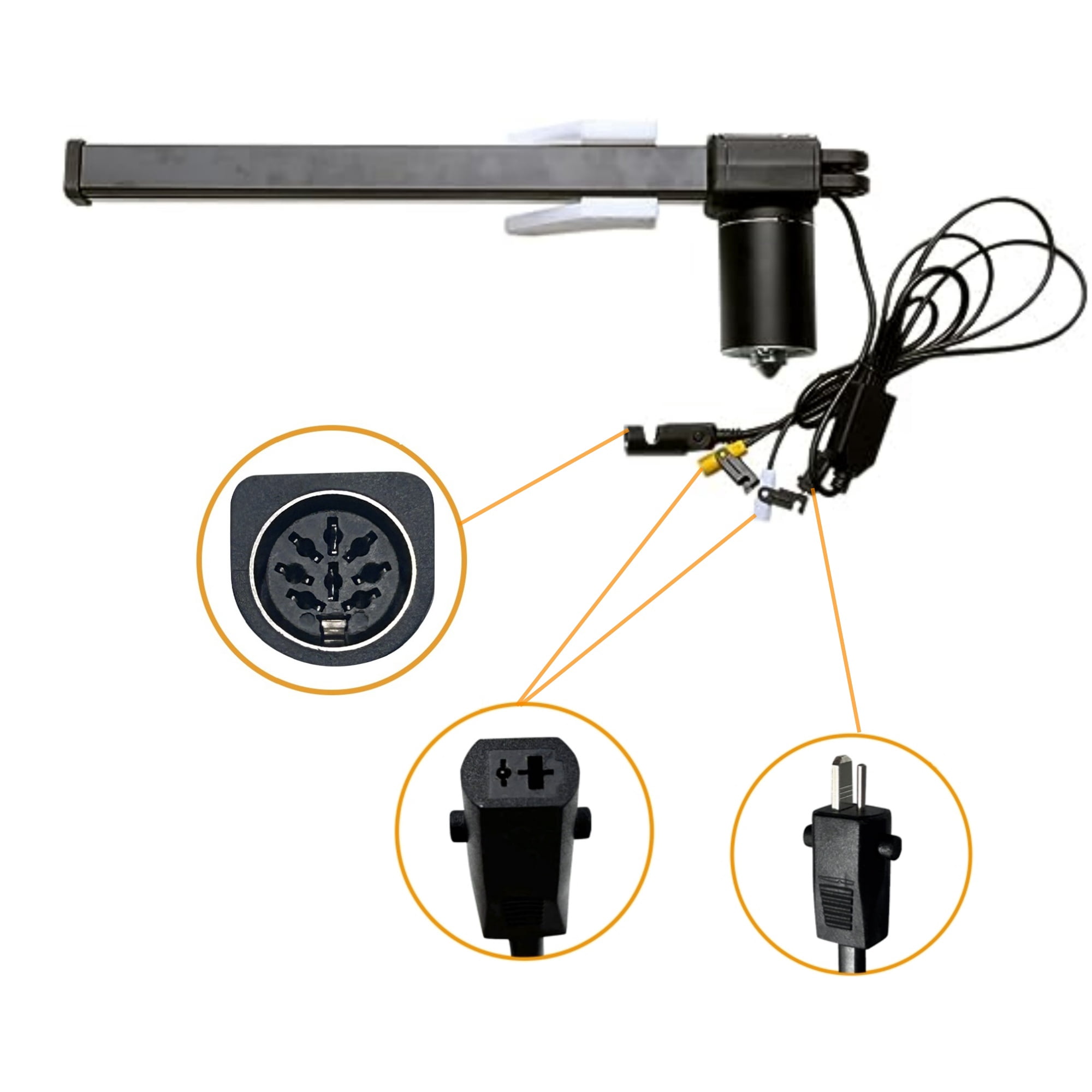

• 2 Pin Flat Round Male Power Transformer Connection, 2x2 Pin Flat Round Female Motor Connection, 8 Pin Female Hand Control Connection


• Easy to install, Stroke: 327 mm/12.87 inches, Minimum install dimension: 172mm/ 6.77 inches, Speed: 40 mm/s, Max.load: 1500 N

• Just application in electric sofa, massage chair, seat bed and other indoor furniture, Check Label and also troubleshoot the switch/remote or power supply before ordering a motor



  Technical data:

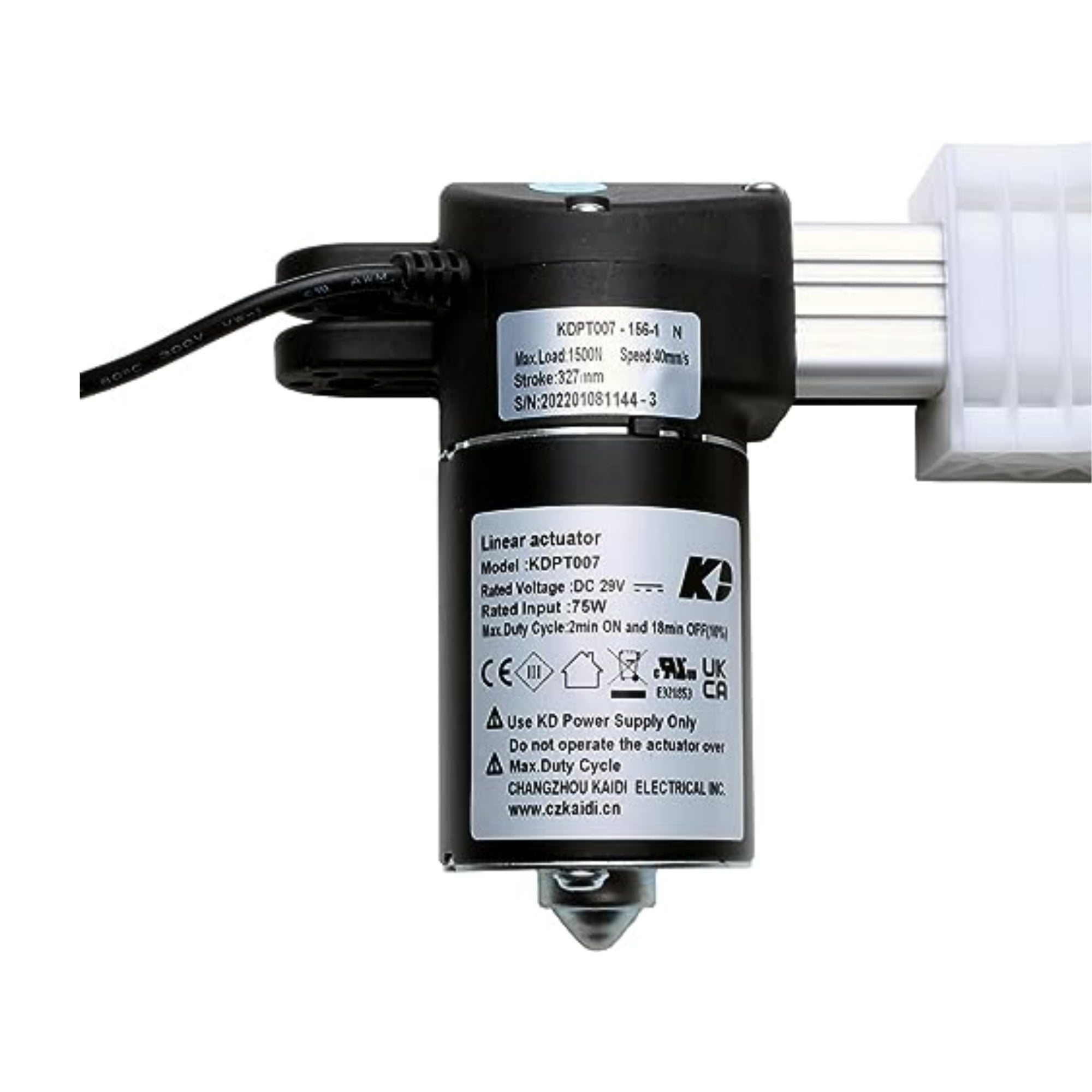

  Model: KDPT007-156

  Stroke: 327 mm/12.87 inches

  Minimum Install Dimension: 172mm/ 6.77 inches

  Speed: 40mm/s

  Max.load: 1500N

  Package Dimensions: 24.8 x 7.0 x 4.2 inches

  Item Weight: 5.0 lb
